Key passive solar design strategies maximize your home's energy efficiency and comfort. You'll want to orient your building properly, with the long axis east-west and main living areas facing south. Utilize thermal mass materials like concrete or brick to store heat. Place windows strategically, focusing on south-facing orientations with proper sizing and high-performance glazing. Don't forget to insulate well and seal air leaks to maintain indoor temperatures. Incorporate natural ventilation techniques and use shading devices to control solar gain. By implementing these strategies, you'll create a home that works with nature, not against it. Discover how these techniques can transform your living space.

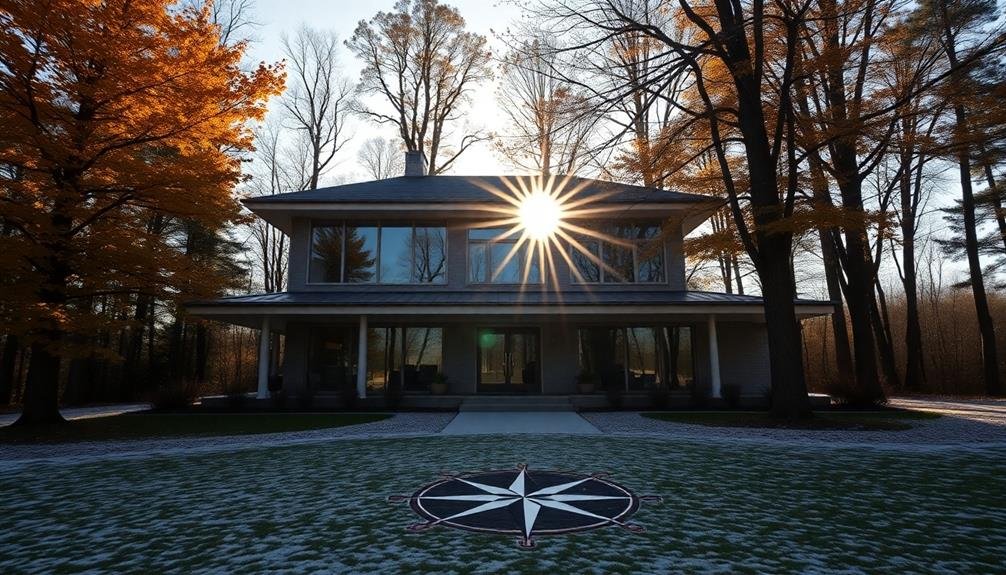

Proper Building Orientation
Orientation is the cornerstone of passive solar design. When planning your passive solar home, you'll want to position it to maximize solar gain in winter and minimize it in summer.
In the Northern Hemisphere, this typically means orienting the building's long axis east-west, with the main living areas and largest windows facing south.
You should aim to have your south-facing windows occupy about 5-12% of your home's total floor area. This allows for ideal solar heat gain during colder months.
However, don't forget to incorporate proper shading devices to prevent overheating in summer.
Consider local climate conditions and topography when determining the exact orientation. Slight deviations from true south (up to 20 degrees east or west) can still be effective.
In areas with morning fog or afternoon heat, you might prefer an easterly or westerly orientation, respectively.
Thermal Mass Utilization
To effectively utilize thermal mass in passive solar design, you'll need to take into account both heat storage materials and their strategic placement.
Opt for dense materials like concrete, brick, or water that can absorb and retain heat during sunny periods, then release it slowly when temperatures drop.
Position these thermal mass elements where they can receive direct sunlight during winter days, such as floors or interior walls, to maximize their heat-storing potential.
Heat Storage Materials
Thermal mass plays an essential role in passive solar design, acting as a heat battery to store and release energy throughout the day. When selecting heat storage materials, you'll want to take into account their thermal properties, cost, and practicality.
Common materials include concrete, brick, stone, and water, each with unique characteristics that affect their performance in passive solar systems.
Concrete is widely used due to its high thermal mass and versatility. It can be incorporated into floors, walls, or even specially designed features.
Brick and stone offer similar benefits and can add aesthetic value to your space. Water, while less common, has an exceptionally high heat capacity, making it an efficient thermal mass when properly contained.
Evaluate these factors when choosing heat storage materials:
- Thermal capacity: The material's ability to store heat
- Conductivity: How quickly heat moves through the material
- Density: Denser materials generally store more heat
You'll want to strategically place these materials where they can absorb direct sunlight during the day and radiate heat at night.
This placement is vital for maximizing the effectiveness of your passive solar design and maintaining comfortable indoor temperatures year-round.
Thermal Mass Placement
Strategically placing thermal mass is essential for maximizing the effectiveness of your passive solar design. You'll want to position thermal mass materials where they can absorb and store heat from direct sunlight during the day, then release it slowly at night. In most cases, this means placing thermal mass on the floor or walls of south-facing rooms.
For ideal performance, distribute the thermal mass evenly throughout the living space. Avoid concentrating it in one area, as this can lead to overheating and poor heat distribution. Consider using thermal mass in interior walls and floors to help regulate temperature throughout your home.
In two-story homes, place thermal mass on the ground floor to take advantage of heat rising. For added efficiency, use darker colors on thermal mass surfaces to increase heat absorption. However, be cautious not to block sunlight from reaching the thermal mass with furniture or curtains.
Remember to insulate the exterior of thermal mass walls to prevent heat loss to the outside. By carefully considering thermal mass placement, you'll create a more comfortable and energy-efficient living space year-round.

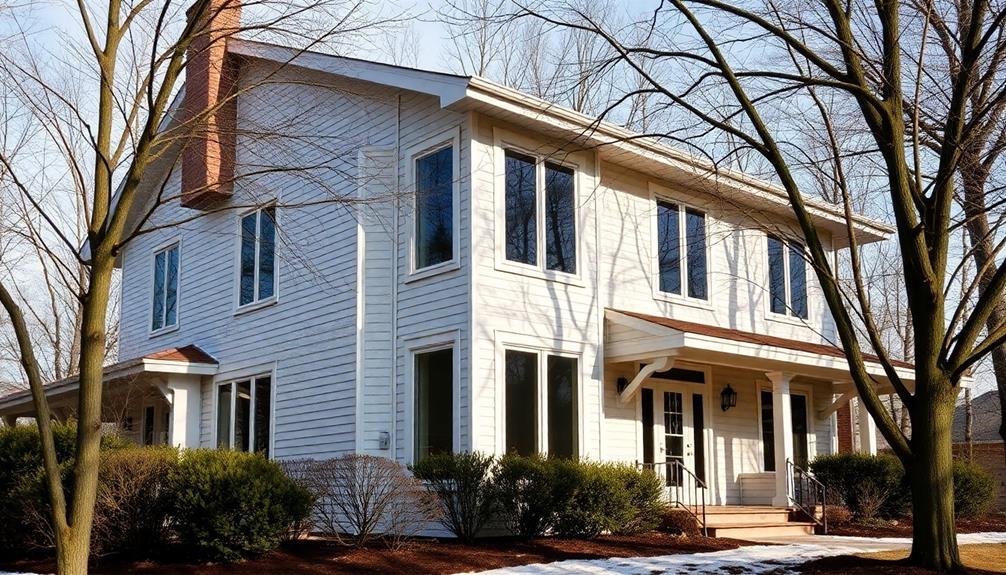

Efficient Window Placement
When considering efficient window placement in passive solar design, you'll want to focus on three key aspects.
First, prioritize south-facing window orientation to maximize solar gain during winter months.
Next, calculate the ideal window size based on your climate and the room's thermal mass to balance heat gain and loss.
South-Facing Window Orientation
Window orientation plays an essential role in passive solar design, with south-facing windows taking center stage.
In the Northern Hemisphere, south-facing windows receive the most sunlight throughout the day, making them ideal for maximizing solar heat gain during winter months. You'll want to make sure that the majority of your home's windows face south to harness this free energy source effectively.
When designing your passive solar home, consider these key points for south-facing window orientation:
- Aim for 50-80% of your total window area to face south
- Use high-performance, double or triple-pane windows to minimize heat loss
- Install appropriate shading devices to prevent overheating in summer
Optimal Window Size Calculation
Determining the ideal window size is essential for maximizing your home's passive solar potential. To calculate the best window size, you'll need to take into account several factors, including your local climate, the room's orientation, and your heating needs.
Start by evaluating your climate zone and the average daily sunlight hours during winter. Next, calculate the floor area of the space you want to heat. A general rule of thumb is to aim for south-facing windows that cover 7-12% of the total floor area. For colder climates, you may want to increase this to 10-15%.
Don't forget to account for thermal mass in your calculations. The more thermal mass you have, the larger your windows can be without risking overheating. Use software tools or consult with a passive solar designer to fine-tune your calculations.
Remember that bigger isn't always better. Oversized windows can lead to overheating in summer and heat loss in winter. Balance is key.
You'll also need to take into account the window's U-value and Solar Heat Gain Coefficient (SHGC) to guarantee best performance. By carefully calculating your window sizes, you'll create an efficient passive solar system that enhances your home's comfort and energy savings.
Glazing Type Selection
In addition to size, the type of glazing you choose for your windows plays an essential role in passive solar design. You'll want to select glazing that maximizes solar heat gain in winter while minimizing heat loss. Double or triple-pane windows with low-emissivity (low-E) coatings are often the best choice. These windows have inert gas between the panes, which improves insulation and reduces heat transfer.
When selecting glazing, take into account the following factors:
- Solar Heat Gain Coefficient (SHGC): Choose higher SHGC for south-facing windows to allow more solar heat in winter.
- U-factor: Opt for a lower U-factor to reduce heat loss through the window.
- Visible Transmittance (VT): Select higher VT for better natural light penetration.
You'll also want to take into account the climate in your area. In colder regions, you might prioritize higher SHGC and lower U-factor, while in warmer climates, you'd focus on lower SHGC to reduce unwanted heat gain.
Don't forget to account for seasonal variations; you may need different glazing types for different orientations of your home to optimize year-round performance.
Insulation and Air Sealing
At the heart of passive solar design lies proper insulation and air sealing.
You'll want to focus on creating a well-insulated and airtight building envelope to maximize energy efficiency and thermal comfort. Start by insulating your walls, roof, and floors with high-R-value materials like fiberglass, cellulose, or spray foam.
Don't forget to insulate your foundation and slab edges to prevent heat loss through the ground.
Air sealing is equally important. You'll need to identify and seal all potential air leaks, including gaps around windows, doors, electrical outlets, and plumbing penetrations.
Use weatherstripping, caulk, and expanding foam to close these gaps. Pay special attention to attic access points and basement rim joists, as these are common areas for air infiltration.
Consider using advanced framing techniques to reduce thermal bridging and increase insulation effectiveness.
You can also install a continuous air barrier, such as house wrap or rigid foam insulation, to further enhance your home's airtightness.

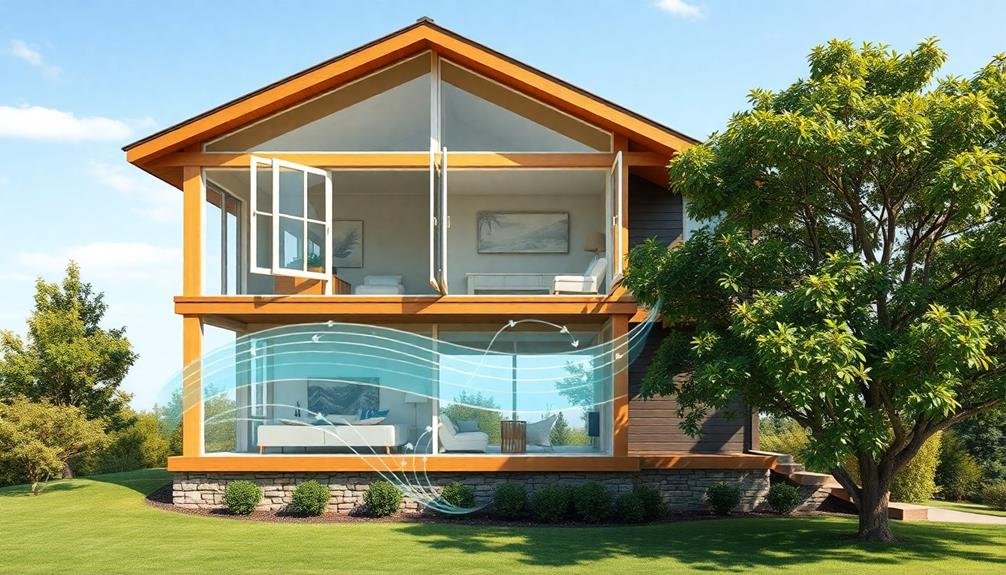

Natural Ventilation Techniques
Many passive solar homes rely heavily on natural ventilation techniques to maintain comfort and air quality. You'll find that these methods can effectively cool your home and improve indoor air without relying on mechanical systems. Natural ventilation harnesses the power of wind and temperature differences to create airflow through your house.
To maximize natural ventilation, you'll want to evaluate the following strategies:
- Cross-ventilation: Position windows on opposite sides of rooms or the house to allow air to flow through freely.
- Stack effect: Install vents or windows at different heights to create a chimney-like effect, drawing cool air in at lower levels and expelling warm air at higher levels.
- Wind towers: Incorporate tall structures with openings at the top to catch prevailing winds and direct them into your home.
You'll also need to pay attention to your home's orientation and local wind patterns. Properly placed windows, doors, and vents can capture breezes and funnel them through your living spaces.
Don't forget to use operable windows and evaluate adding features like transom windows or clerestories to enhance airflow. By implementing these natural ventilation techniques, you'll reduce your reliance on air conditioning and create a more comfortable, energy-efficient home.
Shading and Overhangs
Shading and overhangs play an essential role in passive solar design. They help control the amount of sunlight entering a building, preventing overheating in summer while allowing beneficial solar gain in winter. You'll want to carefully plan these features based on your location's latitude and climate.
For south-facing windows, fixed overhangs work well. They block high summer sun but let in lower winter sun. On east and west facades, you'll need adjustable shading devices like louvers or exterior blinds to manage the low-angle sun. Don't forget about interior shading options, such as curtains or blinds, which offer additional control.
Here's a quick reference guide for shading strategies:
| Orientation | Summer Strategy | Winter Strategy |
|---|---|---|
| South | Fixed overhang | Allow full sun |
| East/West | Vertical louvers | Retract shading |
| North | Minimal shading | Insulation |
| Roof | Light colors | Solar panels |
| Landscape | Deciduous trees | Open spaces |
When designing overhangs, consider the sun's path throughout the year. Use sun angle calculators or modeling software to optimize their depth and placement. Remember, proper shading can considerably reduce your cooling costs and improve overall comfort in your passive solar home.
Frequently Asked Questions
How Much Does Passive Solar Design Typically Increase Construction Costs?
You'll typically see a 5-10% increase in construction costs for passive solar design. However, you're investing in long-term energy savings. The exact cost varies based on your location, design complexity, and materials chosen.
Can Passive Solar Design Be Effectively Implemented in Existing Buildings?
You can implement passive solar design in existing buildings through strategic retrofits. Consider adding south-facing windows, thermal mass, shading devices, and insulation. While it's not as effective as new construction, you'll still see energy-saving benefits.
What Are the Maintenance Requirements for Passive Solar Systems?
You'll find passive solar systems require minimal maintenance. You should clean windows and thermal mass surfaces regularly, inspect seals and insulation annually, and trim vegetation to maintain sunlight access. Occasional repairs to components may be necessary.
How Long Does It Take to See Energy Savings From Passive Solar Design?
You'll see energy savings from passive solar design immediately. Your heating and cooling costs will drop right away, but the full payback period depends on your specific design and climate. It typically ranges from 5-15 years.
Are There Any Potential Drawbacks or Limitations to Passive Solar Design?
You'll find passive solar design has some drawbacks. It can lead to overheating, glare, and high initial costs. You're limited by climate, site orientation, and local building codes. It's not always suitable for every location or building type.
In Summary
You've now got the key strategies for passive solar design. By orienting your building properly, using thermal mass, placing windows strategically, insulating well, employing natural ventilation, and incorporating shading, you'll harness the sun's power effectively. These techniques will help you create an energy-efficient home that's comfortable year-round. Remember, it's all about working with nature, not against it. You're on your way to a more sustainable living space!
