Passive solar lighting optimizes natural sunlight to illuminate and heat your building efficiently. You'll want to orient your structure with its longest axis east-west, maximizing southern exposure. Install large, south-facing windows with proper glazing to capture sunlight and heat. Incorporate thermal mass materials like concrete or brick to absorb and store heat. Design effective shading and overhangs to control sunlight throughout the year. Don't forget to implement natural ventilation strategies for improved comfort. By carefully considering these key design principles, you'll create a space that harnesses the sun's power, reducing energy costs and enhancing your living environment. Explore further to access the full potential of passive solar design.
Building Orientation and Placement
The ideal orientation of a building is vital for optimizing passive solar lighting. You'll want to position your structure with its longest axis running east to west, allowing the southern facade to capture the most sunlight throughout the day. This orientation helps you take advantage of the sun's path across the sky, which varies seasonally.
In the Northern Hemisphere, you should face your building's primary windows southward to maximize solar gain. You'll need to take into account the sun's angle during different seasons, aiming for maximum exposure in winter and controlled exposure in summer. Properly placed overhangs or awnings can help you manage this seasonal variation.
When placing your building on the site, think about natural and artificial obstructions. Trees, hills, or nearby structures can impact the amount of sunlight reaching your windows. You'll want to minimize shading from these elements, especially on the southern side.
If possible, position your building on a south-facing slope to enhance solar exposure. Remember, even a slight deviation from true south can greatly affect your passive solar lighting performance, so use a compass or solar pathfinder to guarantee accurate orientation.
Window Design and Glazing
After optimizing your building's orientation, it's time to focus on the windows themselves. Window design and glazing play essential roles in passive solar lighting.
You'll want to maximize southern exposure for ideal sunlight capture in cooler climates, while carefully managing heat gain in warmer regions.
Consider the size and placement of your windows. Large, south-facing windows allow more natural light and solar heat gain. However, you'll need to balance this with potential overheating issues. Use properly sized overhangs or awnings to block high summer sun while allowing lower winter sun to penetrate.
Choose your glazing wisely. Double or triple-pane windows with low-emissivity coatings can help regulate heat transfer. For south-facing windows, opt for a higher solar heat gain coefficient (SHGC) to maximize winter heat gain. On east and west sides, use lower SHGC glazing to reduce unwanted heat.
Don't forget about frame materials. They can greatly impact thermal performance. Vinyl, fiberglass, or wood frames offer better insulation than aluminum.
Thermal Mass Materials

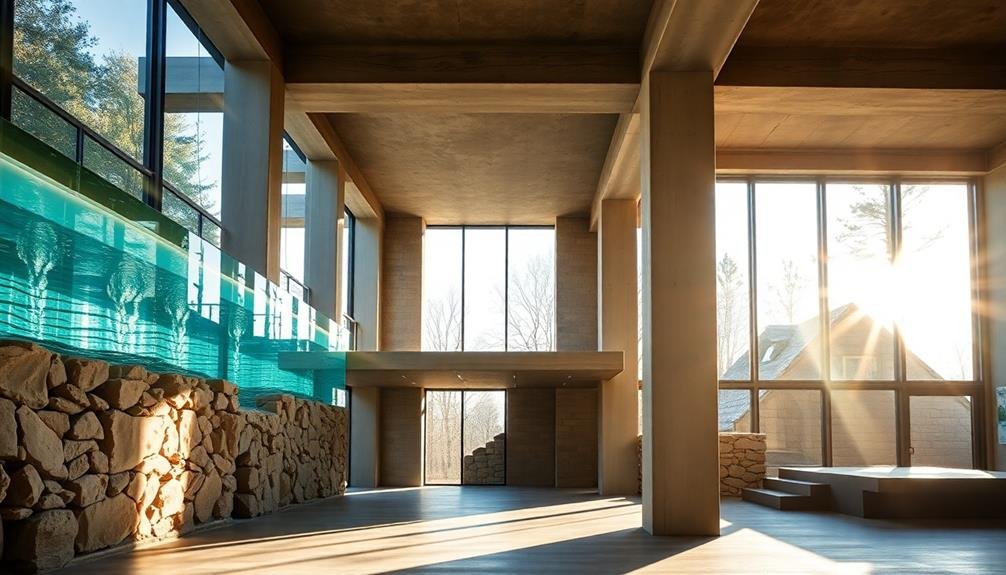

Effectiveness of passive solar lighting design hinges on the strategic use of thermal mass materials. These materials absorb and store heat during the day, releasing it slowly at night to maintain a stable indoor temperature.
You'll want to incorporate materials like concrete, brick, stone, or water into your design, as they've high thermal mass properties. Place thermal mass materials in areas that receive direct sunlight, such as floors or walls. Dark-colored surfaces will absorb more heat, while lighter colors reflect light, improving overall illumination.
Consider using exposed concrete floors or brick walls in south-facing rooms to maximize heat absorption. Water walls or containers can also serve as effective thermal mass elements. They've a higher heat capacity than many solid materials and can be visually appealing.
For best performance, verify your thermal mass is properly insulated from the outside to prevent heat loss. Don't forget about phase change materials (PCMs), which can store and release large amounts of heat as they change state.
These innovative materials can be incorporated into building materials or used in standalone units, offering high thermal storage capacity in a compact form.
Shading and Overhangs
While thermal mass materials excel at heat retention, managing solar gain is equally important in passive solar lighting design. Shading and overhangs play an essential role in controlling the amount of sunlight that enters your space throughout the year.
You'll want to design these features to block high-angle summer sun while allowing low-angle winter sun to penetrate. For south-facing windows, fixed overhangs are an effective solution. You can calculate the ideal overhang depth based on your latitude and the window's height. Typically, you'll aim for full shading during summer solstice and full sun exposure during winter solstice.
Adjustable shading devices, like awnings or exterior blinds, offer more flexibility for east and west-facing windows. Don't forget about interior shading options. Light-colored blinds or curtains can reflect excess heat while still allowing diffused light to enter.
For a more high-tech approach, you might consider electrochromic glass that changes opacity based on sunlight intensity or temperature. Remember, proper shading not only prevents overheating but also reduces glare, making your space more comfortable and energy-efficient year-round.
Natural Ventilation Strategies
Natural ventilation strategies complement passive solar lighting design by enhancing comfort and reducing energy costs. You'll want to incorporate cross-ventilation, stack effect, and wind-driven ventilation into your design. Cross-ventilation occurs when you place windows on opposite sides of a room, allowing air to flow through. The stack effect uses temperature differences to create airflow, with warm air rising and escaping through high openings while cooler air enters at lower levels. Wind-driven ventilation harnesses prevailing winds to move air through your building.
To maximize natural ventilation, consider these tactics:
| Strategy | Benefits | Implementation |
|---|---|---|
| Operable windows | User control, fresh air | Install on opposite walls |
| Thermal chimneys | Enhances stack effect | Create vertical shafts |
| Courtyards | Microclimate creation | Design central open spaces |
Frequently Asked Questions
How Much Can Passive Solar Lighting Reduce Energy Costs?
You can markedly reduce your energy costs with passive solar lighting. It'll cut your reliance on artificial lighting during daylight hours. Depending on your design and climate, you might save 20-50% on lighting-related energy expenses.
Are There Any Disadvantages to Implementing Passive Solar Lighting Systems?
You'll find some drawbacks to passive solar lighting. It can cause overheating in summer, requires specific building orientation, and may limit design flexibility. Initial costs can be higher, and you'll need careful planning to avoid glare issues.
Can Passive Solar Lighting Be Retrofitted Into Existing Buildings?
Yes, you can retrofit passive solar lighting into existing buildings. You'll need to take into account your structure's orientation, add south-facing windows, and install thermal mass. It's more challenging than new construction, but it's often feasible with careful planning.
What Maintenance Is Required for Passive Solar Lighting Systems?
You'll find that passive solar lighting systems require minimal maintenance. Keep windows clean, guarantee movable insulation is functioning, and occasionally check for damage. You should also trim any vegetation that might block sunlight to maintain peak performance.
How Does Passive Solar Lighting Impact Indoor Air Quality?
You'll find passive solar lighting improves indoor air quality. It reduces the need for artificial lighting, which can emit pollutants. It also increases natural ventilation, bringing in fresh air and removing stale air and contaminants from your space.
In Summary
You've now explored the key principles of passive solar lighting design. By optimizing your building's orientation, choosing the right windows and glazing, incorporating thermal mass materials, adding strategic shading, and enhancing natural ventilation, you'll create a more energy-efficient and comfortable living space. Remember, these elements work together as a system. As you implement these strategies, you'll not only reduce your energy costs but also contribute to a more sustainable future. Keep experimenting and refining your approach!
