To create an effective passive solar greenhouse, focus on these 7 key strategies: First, select a south-facing site with ample sunlight. Next, maximize glazing on the south wall using high-quality materials. Incorporate thermal mass like water barrels or concrete floors to store heat. Insulate thoroughly and seal air leaks to maintain temperature. Implement ventilation systems for cooling and air circulation. Use adjustable shading to control light and heat. Finally, add reflective surfaces to enhance light distribution. By applying these techniques, you'll optimize your greenhouse's energy efficiency and create an ideal environment for plant growth. Discover how each strategy can transform your growing space.

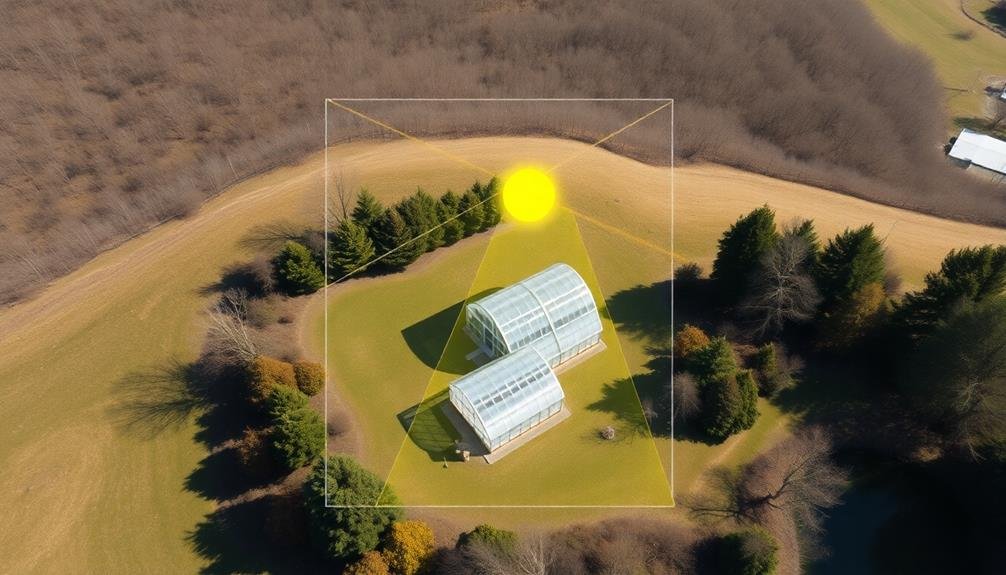

Proper Site Selection and Orientation
When it comes to passive solar greenhouse design, proper site selection and orientation are essential for success. You'll want to choose a location that receives ample sunlight throughout the day, particularly during winter months when light is scarce.
Ideally, position your greenhouse with its longest side facing south in the Northern Hemisphere (or north in the Southern Hemisphere) to maximize solar exposure. Avoid areas shaded by buildings, trees, or other structures that could obstruct sunlight.
Consider the topography of your land; a gentle south-facing slope can provide natural protection from cold winds and enhance solar gain. Make certain the site has good drainage to prevent water accumulation around the foundation.
When orienting your greenhouse, aim for a slight eastward rotation (about 10-15 degrees) from true south. This alignment allows for earlier morning sun exposure and helps prevent overheating in the afternoon.
Pay attention to local climate patterns, prevailing winds, and seasonal sun angles to fine-tune your greenhouse's position. By carefully selecting and orienting your site, you'll create an ideal environment for passive solar heating and year-round plant growth.
Optimal Glazing Materials and Placement
When choosing glazing materials for your passive solar greenhouse, you'll need to weigh the benefits of glass against polycarbonate options.
Glass offers excellent clarity and longevity but can be heavier and more prone to breakage, while polycarbonate is lightweight, impact-resistant, and provides good insulation.
To maximize solar gain, you'll want to concentrate your glazing on the south-facing side of your greenhouse, allowing for ideal sunlight penetration during winter months.
Glass vs. Polycarbonate Options
Choosing the right glazing material is essential for maximizing your passive solar greenhouse's efficiency. Glass and polycarbonate are the two primary options you'll encounter, each with distinct advantages and drawbacks.
Glass offers superior clarity and longevity, allowing more light transmission and maintaining its transparency for decades. It's also more resistant to scratching and UV damage. However, glass is heavier, more expensive, and prone to breakage. You'll need a sturdier frame to support it, which can increase construction costs.
Polycarbonate, on the other hand, is lighter, more impact-resistant, and easier to install. It's an excellent insulator, often featuring double or triple-wall construction for improved thermal performance. Polycarbonate is also less expensive than glass.
The downside is that it yellows over time, reducing light transmission. It's also more susceptible to scratches and may need replacement sooner than glass.
When deciding between glass and polycarbonate, consider your climate, budget, and long-term maintenance preferences. Glass might be ideal for colder regions where maximum light transmission is vital, while polycarbonate could be better suited for areas prone to hail or extreme weather.
South-Facing Glazing Maximization
Nearly all passive solar greenhouse designs emphasize maximizing south-facing glazing to capture the most sunlight throughout the day. This strategy is essential for ideal plant growth and energy efficiency. When designing your greenhouse, aim to have at least 60% of the south wall glazed, with some designs incorporating up to 90% glazing.
To maximize the effectiveness of your south-facing glazing:
- Use double or triple-pane glass for better insulation
- Install low-emissivity (low-E) coatings to reduce heat loss
- Angle the glazing at 90 degrees to the winter sun for maximum light penetration
- Incorporate adjustable shading systems for summer heat control
- Guarantee proper sealing and weatherstripping to prevent air leaks
Remember that the ideal glazing angle depends on your latitude. In general, a vertical or slightly tilted orientation works well for most locations.
You'll want to balance light transmission with heat retention, so consider using different glazing materials for different sections of the greenhouse. For example, you might use clear glass on the south wall and polycarbonate panels on the roof.
Thermal Mass for Heat Storage
Thermal mass is a crucial component in passive solar greenhouse design. It refers to materials that can absorb, store, and release heat energy over time. In your greenhouse, you'll want to incorporate thermal mass to help regulate temperature fluctuations and maintain a stable growing environment.
Common thermal mass materials include water, concrete, stone, and brick. You can use these in various forms, such as water barrels, concrete floors, or stone walls. Place your thermal mass elements where they'll receive direct sunlight during the day, allowing them to absorb heat. At night, they'll slowly release this stored heat, keeping your greenhouse warmer.
To maximize the effectiveness of thermal mass, consider the following strategies:
- Use dark-colored materials to increase heat absorption.
- Confirm proper sizing – aim for about 2-3 gallons of water or 80-120 pounds of masonry per square foot of glazing.
- Distribute thermal mass evenly throughout the greenhouse.
- Insulate the north wall to prevent heat loss.
- Use movable insulation to cover glazing at night, trapping heat inside.
Insulation and Air Sealing Techniques
To maximize your passive solar greenhouse's efficiency, you'll need to focus on proper insulation and air sealing.
Choose insulation materials with high R-values, such as foam boards or spray foam, for walls and roofing to minimize heat loss.
Don't forget to seal all air leaks around windows, doors, and any penetrations to prevent unwanted air infiltration and maintain consistent temperatures.
Proper Insulation Materials
Proper insulation is a cornerstone of efficient passive solar greenhouse design. You'll want to choose materials that offer high R-values and are resistant to moisture, as greenhouses can be humid environments.
Consider these top insulation options for your passive solar greenhouse:
- Polyisocyanurate (polyiso) boards
- Extruded polystyrene (XPS) foam
- Spray foam insulation
- Mineral wool batts
- Recycled denim insulation
When selecting insulation, prioritize materials that won't degrade over time or release harmful chemicals.
You'll need to insulate the north wall, east and west walls, and foundation to minimize heat loss. Don't forget about the roof, as it's a crucial source of heat transfer.
For maximum efficiency, combine different insulation types. Use rigid foam boards for the walls and foundation, and supplement with spray foam to fill gaps and cracks.
In areas prone to moisture, opt for closed-cell foam or mineral wool. Remember to create a vapor barrier on the warm side of the insulation to prevent condensation within the walls.
Sealing Air Leaks
While insulation plays a key role in greenhouse efficiency, it's only part of the equation. Sealing air leaks is equally essential for maintaining a stable environment in your passive solar greenhouse.
Start by inspecting all joints, corners, and connections between different materials for gaps or cracks. Pay special attention to areas around windows, doors, and where the greenhouse structure meets the foundation.
To seal these leaks, you'll need appropriate materials. Use weatherstripping for movable components like doors and operable windows.
Apply caulk or expanding foam for static gaps, depending on their size. Don't forget to check and seal any penetrations for electrical wiring or plumbing.
For larger openings, consider using rigid foam insulation cut to size and sealed in place.
Remember to address potential air leaks at the roof-wall junction and along the ridge of the greenhouse. You can use foam gaskets or specialized tapes designed for these areas.
Ventilation and Cooling Strategies
Efficiency in a passive solar greenhouse hinges on effective ventilation and cooling strategies.
You'll need to balance heat retention with air circulation to maintain ideal growing conditions. Implement a combination of passive and active methods to regulate temperature and humidity levels throughout the year.
Consider these key ventilation and cooling strategies for your greenhouse:
- Install ridge vents or roof windows for natural convection
- Use roll-up side walls or louvered vents for cross-ventilation
- Incorporate shade cloth or retractable screens to reduce solar gain
- Implement thermal mass elements like water barrels or stone floors
- Set up fans for air circulation and evaporative cooling systems
You'll want to automate your ventilation system with thermostats and humidity sensors for consistent climate control.
During hot summer months, focus on preventing overheating by maximizing airflow and reducing solar gain.
In winter, prioritize heat retention while still maintaining adequate air exchange to prevent stagnation and disease.
Shading Systems for Temperature Control
Shading systems play an essential role in maintaining ideal temperatures within a passive solar greenhouse. You'll need to implement effective shading strategies to prevent overheating during hot periods and maximize light during cooler months.
Consider installing retractable shade cloths or screens that you can easily adjust based on sunlight intensity and temperature. These can be manual or automated, allowing you to quickly respond to changing conditions.
For more permanent solutions, you might use exterior shade structures like trellises or overhangs, which block high summer sun but allow lower winter sun to penetrate.
Don't forget about internal shading options. Thermal curtains can provide insulation during cold nights and shade during hot days. You can also use movable panels or blinds to target specific areas of your greenhouse.
When selecting shading materials, opt for those with high reflectivity to bounce heat away from the structure. Light-colored or aluminized fabrics work well for this purpose.
Remember to balance shading with your plants' light requirements, as excessive shading can hinder growth. By carefully managing your shading systems, you'll create a more stable and productive environment for your plants.

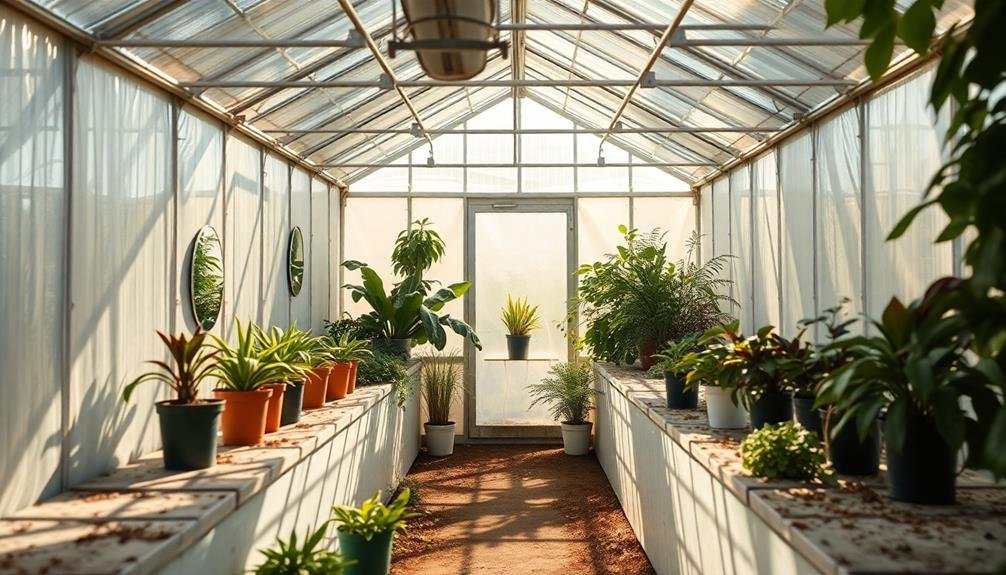

Reflective Surfaces for Light Distribution
Mirrors and other reflective surfaces are powerful tools for enhancing light distribution in your passive solar greenhouse. They can redirect sunlight to areas that would otherwise remain shaded, guaranteeing your plants receive adequate illumination throughout the day.
By strategically placing reflective materials, you'll boost photosynthesis and promote more uniform plant growth.
Consider incorporating these reflective surfaces in your greenhouse design:
- Aluminized mylar sheets
- Polished aluminum panels
- White-painted walls and ceilings
- Reflective floor coverings
- Water-filled containers with reflective backing
When positioning reflective surfaces, aim to bounce light onto plant leaves without creating hot spots or glare. You'll want to adjust the angle and placement of mirrors seasonally to accommodate the sun's changing path.
Remember that different plants have varying light requirements, so tailor your reflective strategy accordingly.
For maximum efficiency, keep your reflective surfaces clean and free from dust or condensation. This maintenance will guarantee ideal light reflection and distribution.
Frequently Asked Questions
How Much Does a Passive Solar Greenhouse Typically Cost to Build?
You'll find passive solar greenhouse costs vary widely, ranging from $10 to $50 per square foot. Your expenses depend on size, materials, and complexity. A DIY approach can save money, while professional construction increases costs.
Can Passive Solar Greenhouses Be Used in All Climate Zones?
You can use passive solar greenhouses in most climate zones, but you'll need to adapt the design. In extreme climates, you might face challenges. Consider your local conditions and adjust features like insulation, thermal mass, and ventilation accordingly.
What Crops Grow Best in Passive Solar Greenhouses?
You'll find that leafy greens, herbs, and cool-season vegetables thrive in passive solar greenhouses. They're ideal for crops like lettuce, spinach, kale, and herbs. You can also grow tomatoes, peppers, and cucumbers with proper temperature control.
How Long Does It Take to See a Return on Investment?
You'll typically see a return on investment for a passive solar greenhouse in 3-5 years. Your payback period depends on factors like climate, crop selection, and energy savings. It's a long-term investment that'll save you money.
Are There Any Government Incentives for Building Passive Solar Greenhouses?
You'll find various government incentives for passive solar greenhouses. Check with local, state, and federal agencies for grants, tax credits, and rebates. They're often available for energy-efficient structures, but specifics vary by location and program.
In Summary
You've now learned the key strategies for designing an efficient passive solar greenhouse. By implementing these techniques, you'll harness the sun's power to create an ideal growing environment. Remember, it's all about balancing light, heat, and ventilation. With proper site selection, glazing, thermal mass, insulation, ventilation, shading, and reflective surfaces, you'll maximize energy efficiency and crop yields. Start applying these principles, and you'll soon enjoy the benefits of your sustainable, productive greenhouse.
